5.8G Wi-fi Bridge, 2Pack PTMP WiFi PTP Level to Level Entry Outside Community CPE 2KM Transmission Distance with 12DBi Excessive-Achieve Antenna 2 LAN 100MBps Ethernet Port 24V PoE Energy Provide

Worth: $71.99
(as of May 21,2023 21:27:39 UTC – Particulars)

Product Description

5.8Ghz Wi-fi Bridges Lengthen Your Web Community

Lengthen your web community from one constructing to a different with out difficult wiring

The CPE220 Kits is one pair of out of doors excessive energy and excessive efficiency 300Mbps wi-fi bridges, which works at 5GHz frequency. Helps Level-to-Level and Level-to-Multipoint wi-fi connection. It’s extra secure and better pace and anti-interference efficiency than 2.4GHz wi-fi bridge. Furthermore, it’s simple to handle by means of the WEB interface.

CPE220 Kits Operate:

A. the machine can works as Auto pairing mode: merely to make use of, join each bridges to the PoE energy adapter to start out working, it can auto pair in jiffy. Customise mode: want join the bridges to the pc by means of ethernet cable, and configure the grasp & slave parameters, this mode go well with for knowledgeable technician.

B. the machine can use for share web networks to a protracted distance, output WiFi scorching level, can also use for transmit the lengthy ranges IP cameras’ video stream to the management heart with out difficult wiring connection.

C. Auto pairing mode works for point-to-point entry connection, customise mode can configure the purpose to a number of level connection.

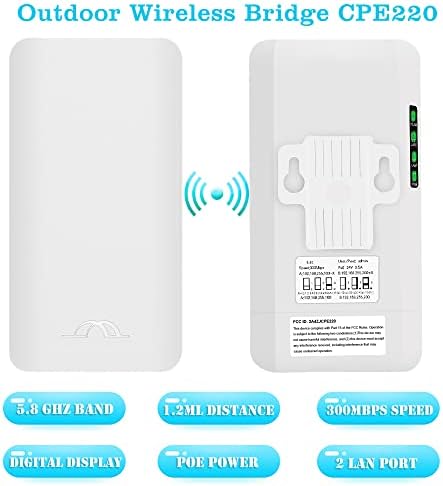

CPE220 5.8G Wi-fi Bridge with 300Mbps and 1.2 Miles Information Switch Vary

CPE220 wi-fi bridge kits is an outside excessive energy and excessive efficiency 300Mbps wi-fi bridge, which works at 5GHz frequency. It helps Level-to-Level and Level-to-Multipoint wi-fi connection. It’s extra secure and better pace and anti-interference efficiency than 2.4GHz wi-fi bridge. Furthermore, it’s simple to handle by means of the WEB interface.

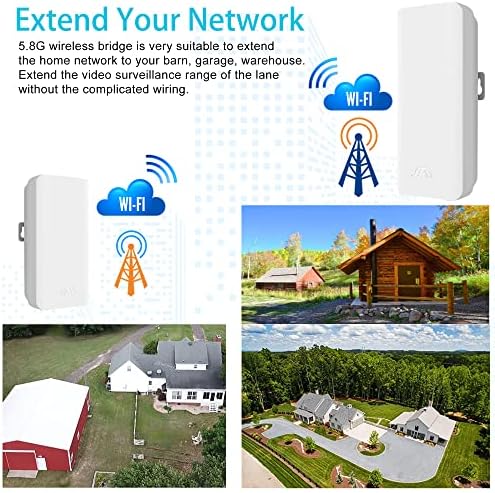

The CPE220 kits is nice to increase your private home web community to a different constructing with out wire connection, you may share your community to your barn storage, warehouse, workshop or small retailer close to to your private home, it additionally works for enterprise to share the web from completely different workplace, workshop, warehouse and and so forth.

We provide a pair of wi-fi bridge within the package deal, we have to set one works as grasp mode, and one other works as slave mode.

Wi-fi Bridge Grasp & Slave Set:

1.Grasp Bridge Set

Transfer the mode change to “A” place, the machine works as grasp mode

2.Slave Bridge Set

Transfer the mode change to “B” place, the machine works as slave mode

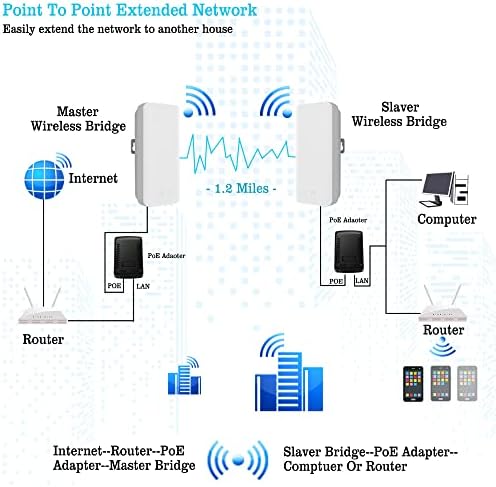

Level to Level to Lengthen Web Community Entry

The grasp wi-fi bridge switch knowledge to the slave wi-fi bridge to share web community entry from one constructing to a different

Wi-fi Bridge Connection

1.Bridge A Connection – Grasp Bridge

Step 1: the LAN port of the PoE Adapter connect with the router by means of an ethernet cable.

Step 2: the PoE port of the PoE adapter connect with LAN port of the grasp wi-fi bridge by one other ethernet cable.

2.Bridge B Connection – Slave Bridge

Step 1: the PoE port of the PoE adapter connect with the LAN port of slave bridge by means of an ethernet cable

Step 2: the LAN port of the PoE adapter connect with the LAN port of the pc or router by one other ethernet cable

The grasp bridge switch knowledge to slave bridge works as level to level mode to increase community entry to a different home, workplace, constructing for web browsing. The grasp bridge additionally output WiFi scorching level, you may open the WiFi connection setting in your cellphone, or laptop computer, you can see the WiFI title CPE5G_5Gxxx, enter the password to get entry.

The entry password is pre-programmed, it’s completely different depend upon what channel the wi-fi bridge working, however solely change the final two or three numbers.

For instance: the WiFi scorching level title is CPE5G_5G161, and the default password is zllinkcpe123456161, if the title is CPE5G_5G153, the password can be zllinkcpe123456153, the final three numbers of the password is match to the final three numbers of the title, zllinkcpe123456 is identical, you’ll find the password with a little bit bit change for various channel.

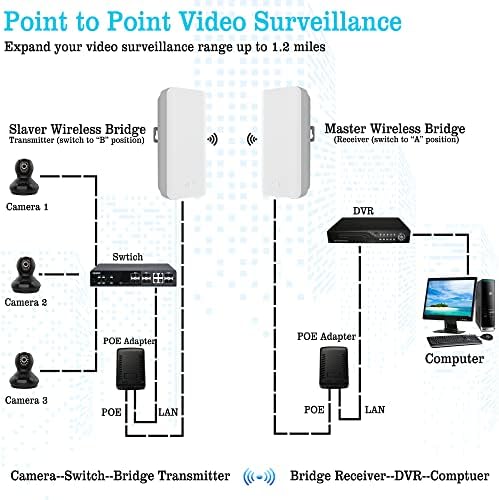

Level to Level Video Surveillance for Residence Workplace

Lengthen your video surveillance community cameras vary, join all of the cameras on one DVR system

Wi-fi Bridge Grasp & Slave Set:

1.Grasp Bridge Set

Transfer the mode change to “A” place, the machine works as grasp mode

2.Slave Bridge Set

Transfer the mode change to “B” place, the machine works as slave mode

Wi-fi Bridge Connection

1.Bridge A Connection – Grasp Bridge

Step 1: the LAN port of the PoE Adapter connect with the DVR by means of an ethernet cable.

Step 2: the PoE port of the PoE adapter connect with LAN port of the grasp wi-fi bridge by one other ethernet cable.

2.Bridge B Connection – Slave Bridge

Step 1: the PoE port of the PoE adapter connect with the LAN port of slave bridge by means of an ethernet cable

Step 2: the LAN port of the PoE adapter connect with the LAN port of the change by one other ethernet cable

Level to Level video surveillance, develop your video surveillance vary, simply administration all of your surveillance digicam in a single DVR system with out difficult wiring. Switch your video surveillance community IP cameras knowledge from one other constructing to your DVR, simple to administration all of the cameras in a single system.

Level to A number of Level Video Surveillance

Level to A number of Level Video Surveillance

Wi-fi Bridge Connection

1.Bridge A Connection – Grasp Bridge

Step 1: the LAN port of the PoE Adapter connect with the DVR by means of an ethernet cable.

Step 2: the PoE port of the PoE adapter connect with LAN port of the grasp wi-fi bridge by one other ethernet cable.

2.Bridge B Connection – Slave Bridge

Step 1: the PoE port of the PoE adapter connect with the LAN port of slave bridge by means of an ethernet cable

Step 2: the LAN port of the PoE adapter connect with the LAN port of the IP cameras by one other ethernet cable

Set up the slave bridges head to head to the grasp bridge, and the route angle not more than 60 levels, this connection want login into laptop to configure the IP deal with for various slave, please learn the person guide for particulars.

On this method, you may simple switch the community digicam video streaming from completely different buildings to the DVR of the management heart, level to a number of level operate is nice so that you can monitoring a number of buildings with out difficult wiring.

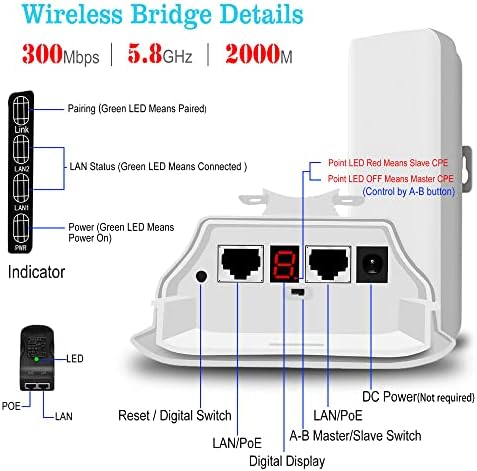

The CPE220 Wi-fi Bridge Interface

Auto pairing and easy to alter the wi-fi bridge’s channel

Auto pairing mode:

join it to the PoE energy adapter, the Energy LED turns inexperienced on, system is energy on, when the each bridges all are energy on, it can auto pair in jiffy, the pairing and LAN standing LED mild all turns inexperienced on. the digital LED indictor show the numeric in pink shade.

you may press the “RST” button to alter the channel to discover a good frequency with out interference, quick press the button, the LED indicator will show the numeric “0”,”1″,”2″,”3″…”F” one after the other, and alter in cycle, every numeric means a special frequency, you’ll find the small print on the person guide.

Customise mode:

at this mode you want join it to laptop and set the completely different IP deal with and dealing mode, quick press the “RST” button is not going to useful at this mode, however you may press and maintain this button over 10 seconds to reset to manufacturing unit mode.

Level to A number of Level Works Angle

Please preserve the wi-fi bridge head to head, and the grasp to a couple of slave bridge route angle have to be in 60 levels.

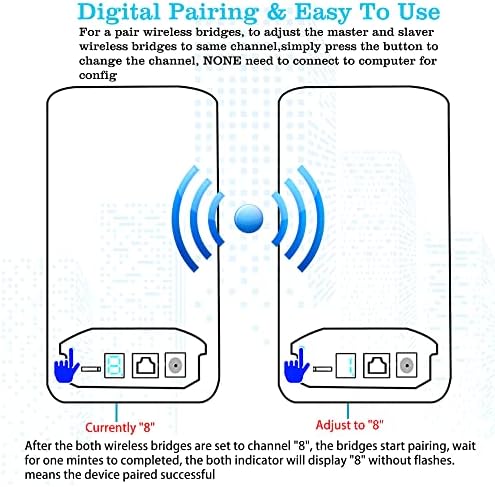

Alter the channel of the bridge

Brief press the “RST” button to alter the bridge working channel, please preserve the identical channel for grasp and slave.

WPA2-PSK Encryption

The bridge output WiFi scorching level with WPA2-PSK encryption to maintain your community in security, don’t worry your privateness to be uncovered.

Parameters

Mannequin:
CPE220

Wired Interface:
10/100Mbps LAN Port * 2

Information Price:
11a: 54M, 48M, 36M, 24M, 18M, 12M, 9M, 6Mbps / 11n: 7.2M, 14.4M, 21.7M, 28.9M, 43.3M, 57.8M, 65M, 72.2M, 14.4M, 28.9M, 43.3M, 57.8M, 86.7M, 115.6M, 130M, 144.4Mbps

Energy Provide:
POE 24V 1.0A

Antenna:
12DBi (5745～5825MHz)

Transmission Vary
1.2 miles

Waterproof:
IP65

Mud-proof:
Assist

Working temperature:
-4℉～158℉

Dimensions:
6.68” * 3.56” * 2.36”

Weight:
24.8 oz

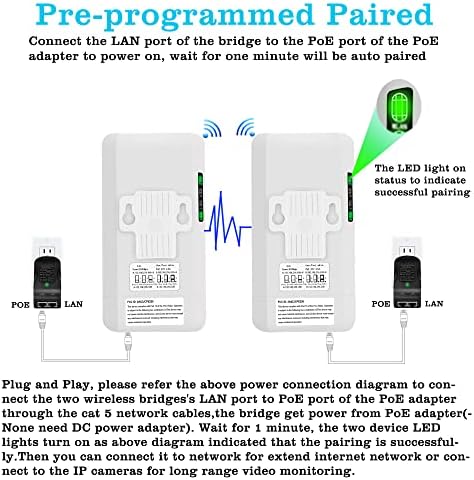

PTMP Pre-programmed: merely join the each bridges to Poe adapters by means of the Ethernet cables, system will energy on, and look ahead to 1 minute for the each gear to pairing and join collectively, the “Hyperlink” inexperienced LED indicator will activate to point that the each bridges have been paired succeeded. Nice for prolong the web to your storage, barn, retailer, and warehouse by means of 5.8Ghz wi-fi transmission, as an alternative of difficult wire connection.
Lengthy Vary & Excessive Pace: the wi-fi bridges work in 5.8Ghz with 300Mbps wi-fi transmission price, assist 1.2 miles transmission distance(Barrier-free), present as much as 100Mbps wired community pace, prolong the networks from one constructing to a different much more, appropriate for share web entry, video digicam surveillance, or distant community WiFi scorching level entry (AP mode).
Level to Level Mode: Join the each wi-fi bridges to the Poe energy adapter will auto pair, no want connect with laptop for the difficult configures, at point-to-point mode can use for lengthy vary video surveillance and web community sharing, the grasp bridge output WiFi scorching level, you may enter password to get entry, prolong the Wi-Fi entry protection as much as 1.2 miles in 60 a level angle of the entrance route.
The FCC ID: 2A4ZJCPE220 This machine complies with Half 15 of the FCC Guidelines. Operation is topic to the next two circumstances:(1)This machine could not trigger dangerous interference, and (2) this machine should settle for any interference obtained, together with interference that will trigger undesired operation.
