ANMBEST 10PCS Shielded CAT6 RJ45 Waterproof Connector for Ethernet LAN Cable Coupling

Price: $39.99
(as of May 03,2023 18:31:15 UTC – Details)

Product Description

Sturdy Connection for High-Speed Transmission

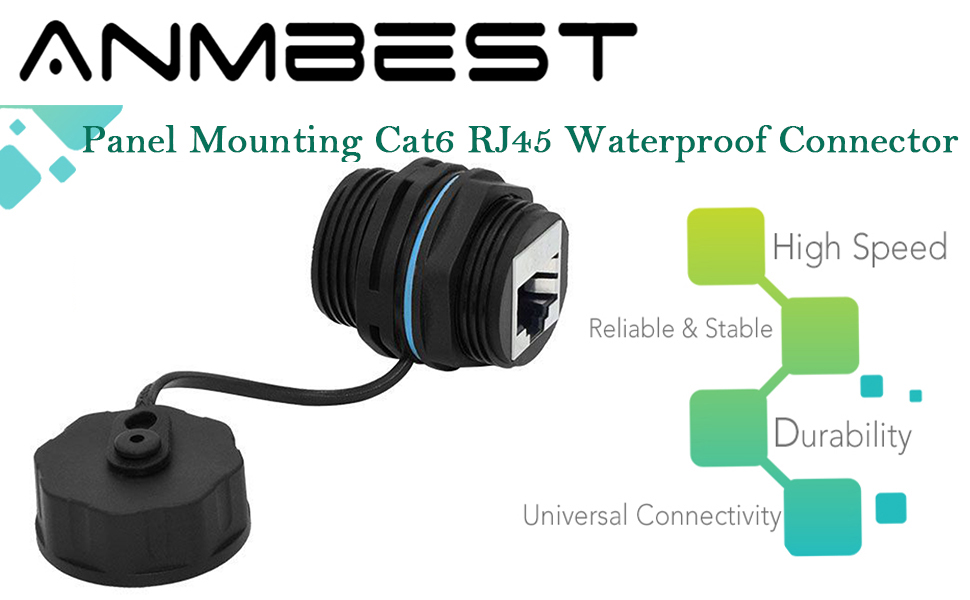

The Shielded Industrial Panel Mount is a Waterproof Ethernet LAN Cable Connector that offers compatibility with existing hardware using the standards-based RJ45 connection system. The Shielded coupler ensures shield continuity protecting against EMI/RFI interference. It is suitable for use with Cat6/Cat5E/Cat5 ethernet cable, and Transmission speed can reach up to 1000 Mbps. The product is injection-molded with PA66 nylon plus fiber (UL94V-0), which makes it flame retardant, UV resistant, anti-aging, and durable.

Specifications

Pins 8P8C Connection Type RJ45 Transmission Category CAT6 Transfer Sspeed 10BASE-T、100 BASE-T、1000 BASE-T、10000BASE-T Thread M23 Rated Voltage/Current 125VAC, 75VDC / 1.5A Insulation Resistance Greater Than 500MΩ Withstand Voltage(AC.V)1min AC1000V 50HZ or 60HZ for 1 minute Durability greater than 500 mating&unmating cycles Shell Material PA66 nylon plus fiber (UL94V-0) Socket Contact Pin Material 0.5mm diameter phosphor copper wire Contact Pin Plating 6FU gold Waterproof Rubber Ring silicone Working Temperature -40℃~120℃ Relative Humidity Less Than 90% Flame Retardant Rating UL94V-0
