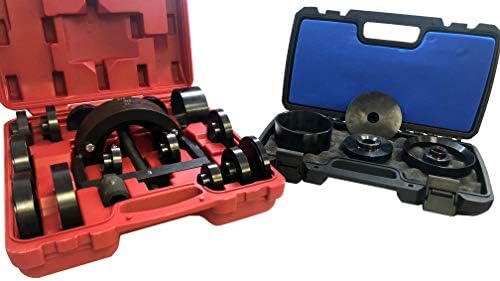

CTA Tools 8650M Master Wheel Bearing and Hub Kit

Price: $524.52
(as of May 20,2023 20:58:32 UTC – Details)

The CTA Tools 8650M Master Wheel Bearing and Hub Kit is perfect for servicing the rear wheel hub and bearing on German vehicles, as well as the front wheel hub and bearing on US, Asian, and German vehicles. This comprehensive kit includes all necessary adapter shoes, installer adapters, adapter sleeves, support disc, spacers, and more. All components come packed in a convenient blow mold case, and all parts are available individually.

The kit includes the following components:

• 8651 – Center screw and thrust bearing assembly (code mark 1)
• 8652 – Elongated Nute (code mark 2)
• 8653 – Bracket Assembly (code mark 3)
• 8654 – Horseshoe adapter – 42.3mm wide end (code mark 3H)
• 8655 – Horseshoe adapter – 28mm wide end (code Mark 3J)
• 8656 – Horseshoe adapter – 37mm wide end with notch (code Mark 3VA)
• 8657 – Spacer (code Mark 4)
• 8658 – Support disc (code Mark 5)
• 8659 – Installer washer – 33mm or 63mm OD (code Mark 6)
• 8660 – Installer washer – 37mm or 59mm OD (code Mark 6H)
• 8661 – Installer washer – 38mm or 66mm OD (code Mark 7)
• 8662 – Installer washer – 34mm or 65.3mm OD (code Mark 7H)
• 8663 – Installer washer – 41mm or 73mm OD (code Mark 8)
• 8664 – Installer washer – 37mm or 71.3mm OD (code Mark 8A)
• 8665 – Adapter sleeve – 95mm OD (code Mark 9)
• 8666 – Adapter sleeve – 100mm OD (code Mark 10)
• 8667 – Adapter sleeve – 109mm (code Mark 11)
• 8668 – Installer washer – 41mm or 78mm OD (code Mark 12)
• 8669 – Installer washer – 43.75mm or 82mm OD (code Mark 13)
• 8670 – Extractor washer – 29mm or 53.4mm OD (code Mark 14)
• 8672 – BMW washer adapter – 45mm
• 8675 – 4 pc. Large bearing upgrade kit – service 89mm to 99mm O.D.
