ELP Excessive Pace USB Digicam 1080P Embedded Webcam Board with 100degree No Distortion Lens for Pc Excessive fps 60fps 120fps 260fps Vast Angle UVC USB2.0 Digicam Module for Laptop computer 3D Printer Raspberry Pi
$69.99
Value: $69.99
(as of May 21,2023 04:48:09 UTC – Particulars)
Product Description

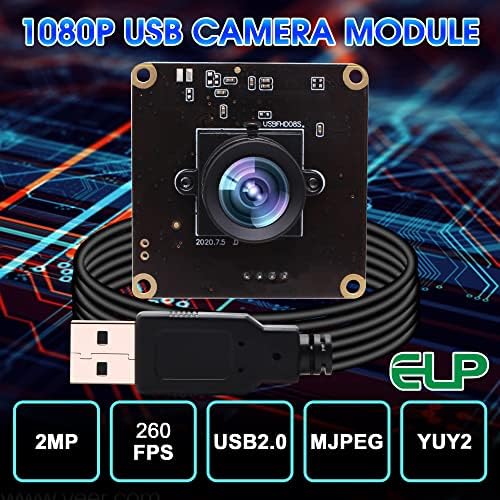

ELP 2mp excessive pace usb digicam with 100degree no distortion extensive angle lens for laptop 1080p mini UVC USB2.0 video embedded webcam board for laptop
Parameters:
Mannequin: ELP-USBFHD08S-LC1100
Sensor:1/3 inch OV4689 Sensor
Connecting Port sort:USB2.0 Excessive Pace
Free Drive Protocol:USB Video Class(UVC)
Image format:”YUY2 and MJPEG optionally available”
Auto publicity:AEC Assist/Auto white blance AEB Assist
Efficiency:
1920X1080 MJPEG@60fps
1280X720 MJPEG@120fps
640X360MJPEG@260fps
Adjustable Parameters:Brightness,Distinction,Saturation,Hue,Sharpness,Gamma,Acquire,White steadiness,Backlight Distinction,Publicity
Voltage:DC 5V/present 150mA/work temperature DEGREES(-20~70)
Measurement:38x38mm
UVC to be used in home windows,linux,mac,raspberry pi,android,and so on.
Top quality CMOS OV2710 picture sensor for sharp clear picture,MJPEG/YUY2 optionally available,suppor OTG protocol.
Excessive Decision 1080P:
Max Decision:
1920H) X 1080(V) 2Megapixel
2mp Full HD excessive pixel know-how for sharp picture and correct coloration copy.
Excessive Pace:
can drive 1080P@60fps,720P@120fps,
360P@260fps,usb digicam with quick body for fast transferring objects capturing.
Excessive Expertise Picture Sensor:
Undertake Excessive Expertise 1/3″CMOS OV4689 Picture Sensor,Work Effectively.
Plug and play,free driver,help UVC compliant,mini dimension,mild weight,excessive appropriate with home windows,linux,mac,raspberry pi,and so on.
Plug and Play/Free Driver
UVC-compliant, simply join the digicam to PC, laptop computer, Android gadget or Raspberry Pi with the USB cable with out additional drivers to be put in.
Excessive Compatibility:
Can Work With Most OS:
Home windows,Linux,Mac
Raspberry Pi,Android,and so on.
Mini Measurement:
mini 38mmx38mm mild weight digicam board will be put in in most hidden and slim place.
Tremendous mini usb digicam board for laptop,laptop,laptop computer,raspberry pi,android growth board,Jetson Nano,and so on
FOR RASPBERRY PI:
It may work with already preinstalled digicam software program as an alternative of builtin digicam.
Assist Android growth board,Raspberry Pi growth board,Jetson Nano,and so on.
FOR PC:
Assist home windows,linux,mac,Android,raspberry Pi
Very simple to make use of,UVC compliant,free driver,simply plug in and go.
Small define and skinny profile for embedded machine visions.
Functions:
eye monitoring gadget
excessive pace video capturing gadget
observing golf
driving studying system
residence surveillance
video convention
robotic machine imaginative and prescient
drone
dashcam
child digicam
Excessive body 260fps usb digicam module with 2mp excessive decision 1080P can be utilized in any video system for private or industrial.
Module: ELP-USBFHD08S-LC1100
About Excessive Pace USB Digicam:
Excessive pace real-time uncompressed picture recording, real-time show
It ensures body loss and solves the issues of body loss and energy failure safety loss in conventional reminiscence recording mode;
The system works independently,hardly occupies laptop assets, and has excessive reliability
The software program interface is easy, handy for secondary growth and real-time processing.
Typical Software Fields:
Within the industrial discipline: the event of metallic supplies and resin supplies, it’s used to look at the path and state of inside cracks when supplies are impacted, and to research the construction when supplies are broken.
In sports activities: baseball and golf, the state of catching the ball and the resistance attributable to air.
Within the printing means of packaging and label industries: very refined printing defects in high-speed printing will be detected in actual time. Discovering printing defects can present beneficial data for manufacturing, in order that measures will be taken within the manufacturing course of to scale back the ultimate loss. It may simply detect widespread defects in printing, reminiscent of scratches, mud, lacking prints, ink and wrinkles. It may vastly enhance the return on funding and reduces the output of waste merchandise.
By way of product growth and product verification: the high-speed digicam has no restrict on the scale of the topic. In line with the situations of the lens, normal materials and microscope pictures can be utilized.
Max Decision
2.0Megapixel 1080P
2.0Megapixel 1080P
2.0Megapixel 1080P
2.0Megapixel 1080P
2.0Megapixel 1080P
2.0Megapixel 1080P
Picture Sensor
1/3″ CMOS OV4689
1/3″ CMOS OV4689
1/3″ CMOS OV4689
1/3″ CMOS AR0130
1/2.7″ CMOS OV2710
1/2.9″ SONY IMX323
Lens
100degree No distortion Lens
3.6mm Lens
2.9mm Lens
2.1mm Lens
2.1mm Lens
3.6mm Lens
Mini Illumination
0.1LUX
0.1LUX
0.1LUX
0.05LUX
0.05LUX
0.01LUX Low Illumination
H.264
NO
NO
NO
✓
NO
✓
Night time Imaginative and prescient
NOT Assist
NOT Assist
NOT Assist
Non-compulsory
Non-compulsory
Non-compulsory
Max Body
360P@260fps
360P@260fps
360P@260fps
1080p@30fps
480P@100fps
1080p@30fps
Constructed-in Microphone
NO
NO
NO
✓
NO
✓
Plug and Play
✓
✓
✓
✓
✓
✓
Assist OS
WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above
WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above
WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above
WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above
WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above
WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above
ELP 2mp Webcam Board Module with 1/3inch CMOS OV4689 Picture Sensor for sharp picture monitoring,fastened focus 100 diploma no distortion extensive angle lens.ELP mini 38*38mm/32*32mm usb digicam board will be put in in most hidden and slim place for a house surveillance system,wildlife pictures,sprint cam,child digicam, and so on.
Excessive Body Charges: MJPG 260fps@360P; 120fps@720p,60fps@1080p; Excessive pace USB 2.0 interface.FHD 1080P video USB digicam for clear surveillance: ELP 2.0 megapixel 1080p FHD USB digicam module,Excessive Pace 260fps usb digicam module for clean video recording.
ELP Excessive fps USB Digicam with UVC for every kind of system,Plug&Play,UVC-compliant, simply join the digicam to PC, laptop computer, Android gadget or Raspberry Pi with the USB cable with out additional drivers to be put in.
YUY2 and MJPEG compression format optionally available:ELP 2.0 megapixel excessive pace 260fps usb digicam module with MJPEG/YUY2 compression format optionally available assist to save lots of extra cupboard space,streaming with much less demand in your laptop supplies quicker and smoother video importing.
ELP Plug&Play Free Driver 2 million pixels USB2.0 Digicam Module: Assist UVC compliant,plug in and go,simply join the digicam to PC,laptop computer,Android gadget or Raspberry Pi with the USB cable with out additional drivers to be put in.USB Protocal USB2.0 HS/FS safety digicam.ELP 2megapixel usb cameras with excessive decision can be utilized in any video system for private or industrial.
Extensively Software: ELP tremendous small and mini dimension usb digicam module on your embedded purposes.Compact digicam module for every kind of machine imaginative and prescient,video convention,residence video surveillance system,safety digicam system,sprint cam,monitoring 3D printer,child pet digicam,robotic machine imaginative and prescient,financial institution safety,ATM,robotic.ELP 2 million pixel digicam module dimension:38*38/32*32mm.
