Geeetech Mizar Professional 3D Printers Assist Digital Handbook&Auto Leveling 3D Printer with Resume Printing Extremely Silent 3D Printers for Newbie Breakage Detection Construct Measurement 8.7 * 8.7 * 10.2 inch

Value: $289.99
(as of May 21,2023 11:04:13 UTC – Particulars)

Product Description

Replace：With a purpose to permit customers to make use of and debug Mizar Professional higher, we now announce that the firmware code of Mizar Professional has been uploaded to GitHub！

Mizar Professional

Discover Youe Good Printer

220*220*260 mm

Print Measurement

255*255*260 mm

MK8 Extruder

Extruder

Twin Gear Extruder

Mechanical

X_Endstop

Mechanical

Mechanical

Y_Endstop

Optical

Optical

Z_Endstop

Optical

Single Z Axis

Z Axis

Twin Z Axis

220*220*260 mm

Print Measurement

255*255*260 mm

MK8 Extruder

Extruder

Twin Gear Extruder

Mechanical

X_Endstop

Mechanical

Mechanical

Y_Endstop

Optical

Optical

Z_Endstop

Optical

Single Z Axis

Z Axis

Twin Z Axis

Mizar S

Mizar S

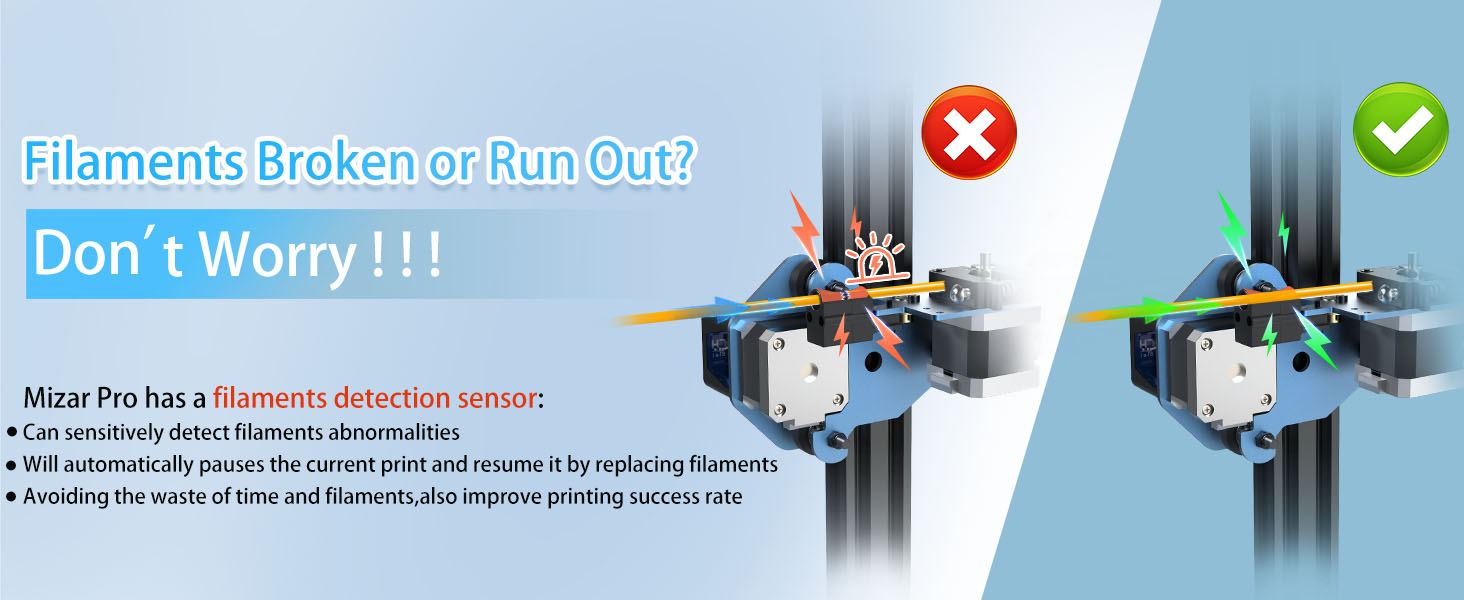

1 Resume Printing 2 Detection Sensor 3 Shade Display screen 4 Scorching Mattress 5 Humanized Design

Mizar Professional Elements Overview

Every parts of the printer has a textual content label on beside. in order that the elements may be correctly understood and the machine may be assembled full shortly.

Mizar Professional Join Cables Overview

Every cable of the printer has a textual content label on the top.please join the cables appropriately in accordance with the next image.

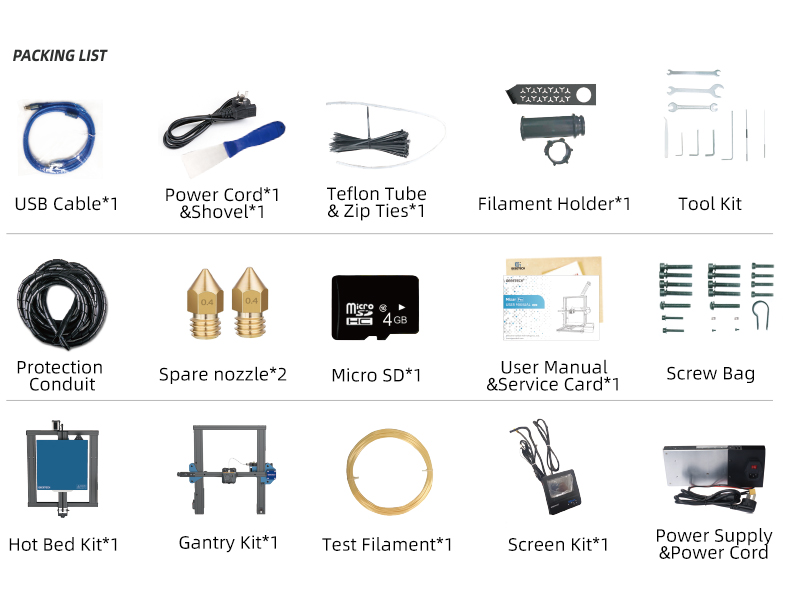

Mizar Professional Packing Listing

After receiving the product, please conduct unpacking inspection first:

1. First verify whether or not the equipment are lacking;

2. Test whether or not the recent finish and sizzling mattress are free (they might be free throughout transportation);

3. Test whether or not the facility provide voltage gear is appropriate.

Mizar Professional Auto Leveling Video

1. Select auto-leveling;

2. Please use the software to softly push the nozzle upward from the underside of the nozzle to finish the leveling sensor calibration;

3. Ready for preheating;

4. Really easy to stage,now you can begin printing.

Mizar Professional Handbook Leveling Video

1. Clear up the residue on the nozzle;

2. Select Handbook-leveling;

3. Alter the space between hotbed and nozzle to the thickness of a chunk of paper,a slight scratch on paper is one of the best;

4. Alter the 9 factors of hotbed in flip.

Mizar Professional Auto Leveling Z-offset Video

1. This perform is used to regulate the space between the nozzle and the recent mattress;

2. After you employ auto leveling mode to finish leveling of sizzling mattress, if you wish to make the primary layer adhesion extra agency and ideal,you should use this perform for slight adjustment;

3. In frequent situation,you can begin printing straight after auto leveling.

Mizar Professional Technical Specification

Printing Expertise
FDM

Energy
Enter: AC 115/230 V, 50-60 HZ ; Output: DC 24/14.6 A, 350 W

Layer Thickness
0.1~0.2 mm

Print Measurement
220*220*260 mm / 8.66*8.66*10.24 inch

Printing Materials
PLA/PETG/ABS/TPU/PVA/HIPS,and so on

Pringting Pace
10~150 mm/s ; 60~80 mm/s is beneficial

Connection Port
1*TF Card , 1*USB

Pringting Accuracy
±0.1 mm

Nozzle
Diameter: 0.4 mm ; Amount: 1

Slicing Software program
Simple Print,Repetier-Host,Cura

Scorching Mattress Temperature (Max)
110℃ (want 11min )

Supported File Format
.Gcode

Machine Measurement
462(L)*515(W)*445(H) mm

Packing Measurement
512(L)*512(W)*274(H) mm

Machine Internet Weight
8.9 kg

Package deal Weight
9.6 kg

Click on “be taught extra” to get extra concepts !

Click on “be taught extra” to get extra concepts !

Click on “be taught extra” to get extra concepts !

Click on “be taught extra” to get extra concepts !

Do I have to buy further leveling sensors for this twin leveling printer?

Not wanted.Mizar Professional can full automated leveling with out exterior 3D-Contact/BL-Contact.and can be utilized for a very long time after leveling as soon as.

Why does Mizar Professional’s sizzling mattress use a totally mounted design?

The mounted sizzling mattress can successfully clear up the uneven sizzling mattress attributable to thermal growth and chilly contraction, and the primary layer is less complicated to connect, successfully enhancing the success price of printing.

What must be performed after receiving the product?

1. Perform unpacking inspection first; 2. Learn the directions fastidiously; 3. Please stage the recent mattress earlier than use; 4. Make certain the voltage gear is on the appropriate place after which activate the facility change.

How can I discover the Cura profile for this printer?

Cura 5.3.0-beta.1 has been launched and the brand new model has built-in recordsdata for the Geeetech Mizar professional 3D printer. You possibly can replace to the newest model of Cura for those who want it.

What is the GML technique of the printer?

The GML means “Geeetech Handbook Leveling”.Auctually,the Twin Leveling= Handbook Leveling(GML)+Auto Mattress Leveling(ABL).

【Extra Clever 3D Printer】Auto leveling 3D printer Mizar Professional has LCD contact display management perform. It additionally has Filament Break Detection and Resume Printing Perform. The extremely smart 3D printers will make your printing course of quicker. The 3D printer will likely be excellent for residence or college use.
【New Design Hotbed】The hotbed adopts a totally mounted design which may successfully clear up the deformation of the hotbed. The auto leveling Mizar Professional comes with a magnetic plate and metal sheet, has stronger adhesion and simpler to take away the fashions. Print measurement is 8.7 * 8.7 * 10.2 inch.
【Metallic Bowden Extruder】The auto-leveling 3d printers include steel bowden extruder, which is extra sturdy and has extra extrusion power will gives a stronger torque to make sure a continuing provide of filament.

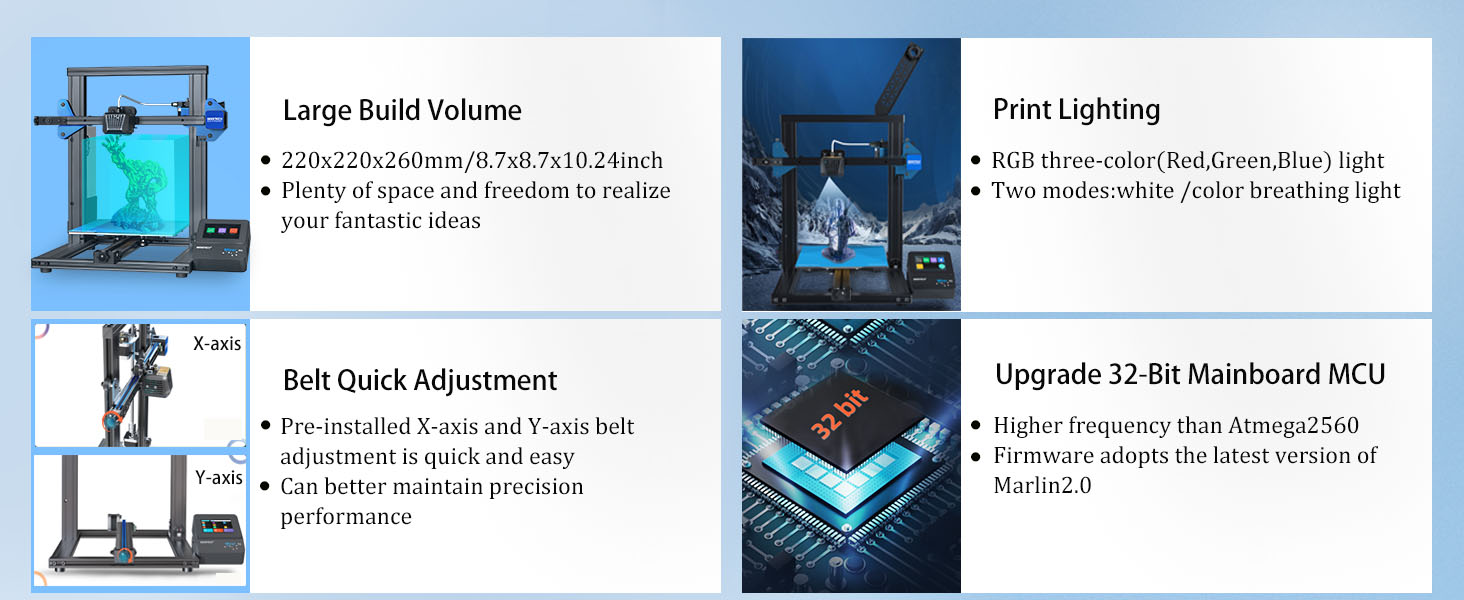

【Extra Simple to Use 】The 3D printers physique is pre-installed and each cable has point out title, straightforward to put in. Mizar Professional has a high-performance 32-bit MCU, can print at a quicker pace and successfully scale back the noise of the stepper motor, printing sound < 50dBs, is not going to disturb your work, life and research. There's an RGB tri-color LED put in close to the hotend, and you may alter the mode as wanted, it is going to be simpler so that you can see the small print of the mannequin.
