HUNSN Micro Firewall Appliance: What You Need to Know

If you’re looking for a powerful and reliable micro firewall appliance, the HUNSN RJ34 is worth considering. However, it’s important to note that this is a barebone machine, meaning you’ll need to provide your own system memory, storage drive, and operating system to complete it.

Here’s what you need to know about this mini PC:

Model Number: HUNSN RJ34
Chassis: Aluminum with knockout hole, wiring the cables to the external
CPU: Intel Processor N95 6M Cache, up to 3.40 GHz
AES-NI Supported: Yes
Memory: 1 x SO DIMM DDR5 4800 MT/s, up to 32GB
Storage: 1 x M.2 2280 NVME x2 SSD, 1 x M.2 WiFi adaptor board for M.2 2280 NVME x2 SSD
Network Card: Intel 2.5GbE I226-V, UDE built-in filter connector

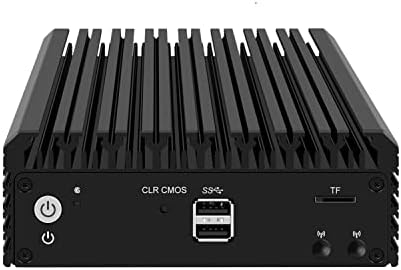

I/O Interface: Power ON/OFF, GPIO, CLR CMOS, 4 x USB2.0, TF Slot for Data Storage/System Boot, HDMI2.1, DP1.4, 4 x LAN, DC_IN
Expansion: M.2 Key-E WiFi slot for NVME SSD, if need to use M.2 WiFi slot, remove the M.2 NVME adapter board, support to expand 4 x M.2 x1/mSATA/SATA, contact HUNSN to customize
Power: DC100-240V AC/50-60hz, 12V3A
Operating Temperature: -10°c~70°c
Storage Temperature: 0°c~70°c
Relative Humidity: 5%~85% (non-condensing)
TDP: 15w
Cooling system: Fanless, 80 x 80mm holes, support to add 8010 fan, 2 x small 4pin fan sockets support temperature-control
Size: 145.6 x 145.4 x 57.3mm
Weight: 1.3kgs
Packing List: HUNSN RJ34 firewall appliance, power supply, power cord, warranty card
Function: Supports hardware auto power on (enabled default), network wake-up, system power management, temperature management
System Compatibility: 5.10.x and above core-based freebsd router systems, linux distros, or win.os supported. UEFI support only
Compatibility: firewalls tested with pfsense plus, opnsense and other popular open-source software solutions

It’s worth noting that the RJ34 is designed to be compact and quiet, with a fanless design that makes it ideal for small office deployments. However, it’s important to use a big brand memory and SSD/HDD with quality assurance to ensure optimal performance.

Also, be sure to keep in mind that you’ll need to provide your own system memory, storage drive, and operating system to complete this system. But if you’re willing to put in the work, the HUNSN RJ34 can be a powerful and reliable micro firewall appliance.
