SEETEC LUT215 21.5 Inch In-built De Log 3D LUT Broadcast Studio Monitor 3G-SDI 4K HDMI Full HD 1920×1080 for Publish and Reside Manufacturing Broadcast

Worth: $879.99
(as of May 21,2023 12:47:46 UTC – Particulars)

Product Description

Let your video capturing change into simpler
SEETEC has been dedicated to offering the excellent broadcast monitoring and options for the skilled filmmakers.
Whether or not the improve of the superb show expertise from HD to FHD or to UHD 4K decision, SEETEC goals to help the skilled creators to acquire the higher advantages and to create extra thrilling tales, with essentially the most superior expertise to enhance the manufacturing effectivity.

Customary Equipment:

1× Mini HDMI Cable 1× V-mount Battery Plate 1× 3A Energy Adapter 2× Stand Ft 1× Operation Handbook

1. Vast view angle IPS Display screen, Full HD 1920×1080, vivid, colourful show

2. 3G-SDI, HDMI2.0, HDMI1.4, RS485, GPI, DP (DisplayPort) inputs

3. Particular Options:

*Constructed-in Multi digital camera Delog LUTs, Person 3DLUTs add through USB (Retailer as much as 16)

*Help GPI management, dynamic IMD, help TSL 3.1/4.0 and IMAGE VIDEO protocol, 16-ch embedded audio meters show

*Histogram, False Colours, Over Publicity (Publicity IRE Adjustable) , Focus Help (Crimson, Inexperienced, Blue three colours optionally available spotlight over elements of the picture in focus)

*Timecode Show (LTC & VITC), Facet Ratio (Auto, 4:3, 16:9, Full Display screen)

*Image in Image (Adjustable Horizontal or Vertical Wipe Place)

*Over Scan, Customized Zoom (0~100), Anamorphic Mode (1.3x, 2.0x, 2.0x magazine, Person-defined adjustment: 1.20X~2.00X)

*Pixel to Pixel, Picture Freeze, Window Rotation (90°, 180°, 270°, H-Mirror, V-Mirror)

*Middle Marker, Security Marker (80%, 85%, 90%, 93%, 96%), Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 1:1)

*Marker Colour (Crimson, Inexperienced, Blue, Black, White), Test Area (Colorless, Crimson, Inexperienced, Blue)

*Adjustable Gamma Choice (1.8, 2, 2.2, 2.4, 2.6, SRGB, ITUBT.1886), Selectable Colour Temperature Presets

4. Monitoring through entrance panel 3.5mm stereo headphone jack and built-in speaker

5. Energy utilizing included 12-volt provide or use customary 4-pin XLR

True Colour . Skilled Colour Calibration

Use Rec.709 colour customary SEETEC makes use of the skilled Rec.709 HD colour customary, and makes use of the colour calibration expertise, with the skilled instrument calibration on the manufacturing facility, it may well obtain monitor calibration effectively and get correct colour replica simply, don’t distort the colour, present the true picture while you capturing video.

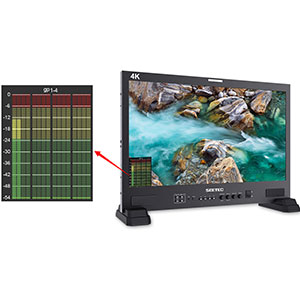

16-Channel Audio Stage Meters

The monitor can de-embed audio from SDI and HDMI. Help choose any 2 channels audio to output through speaker or 3.5mm headphone jack. Below SDI audio, it helps max 16-ch embedded audio meters show, and you’ll choose to show solely 2 channels, 4 channels, 8 channels, and full 16 channels. Below HDMI audio, solely 2 channels audio shows are supported.

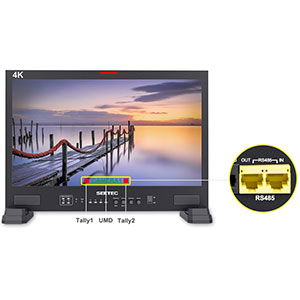

UMD and Textual content-Tally Show

TSL 3.1/4.0 and Picture Video Protocol LUT215 helps UMD and Textual content-Tally show of TSL 3.1/4.0 and Picture Video protocol, with 0-126 TSL deal with choice, and Max 16 letters displayed. The UMD inputs through RS485 port and outputs through RS485 port.

SDI Help Format

480i/576i720p (60/59.94/50/30/29.97/25/24/23.98)1080i (60/59.94/50)1080p (60/59.94/50/30/29.97/25/24/23.98)

HDMI2.0/DP Help Format

480i/576i/480p/576p720p (60/59.94/50/30/29.97/25/24/23.98)1080i (60/59.94/50)1080p (60/59.94/50/30/29.97/25/24/23.98)3840×2160p (60/50/30/25/24)4096×2160p (60/50/30/25/24)

HDMI1.4 Help Format

480i/576i/480p/576p720p (60/59.94/50/30/29.97/25/24/23.98)1080i (60/59.94/50)1080p (60/59.94/50/30/29.97/25/24/23.98)3840×2160p (30/25/24)4096×2160p (24)

LUT215

Show Spec.

Display screen Measurement: 21.5″ IPS

Colour Depth: 16.7M

Decision: 1920×1080 pixels

Dot pitch: 248.25×248.25 um

Facet Ratio: 16:9

Brightness: 250cd/m²

Distinction Ratio: 3000:1

Backlight: LED

Viewing Angle: 89°/89°(L/R) 89°/89°(U/D)

Basic

Enter Voltage: DC9-24V

Energy Consumption: ≤27W

Working Temperature: -10°C~50°C

Storage Temperature: -20°C~60°C

Unit Measurement: 511.6Lx355.6Hx36D (mm) (W/O stand ft)

Unit Weight: 4.4kg

Customary Equipment

1× Mini HDMI Cable
1× V-mount Battery Plate
1× 3A Energy Adapter
2× Stand Ft
1× Operation Handbook

Display screen Measurement
OLED Display screen
15.6″ IPS
17.3″ IPS
17.3″ IPS
21.5″ IPS
21.5″ IPS

Decision

1920×1080 pixels
1920×1080 pixels
1920×1080 pixels
1920×1080 pixels
1920×1080 pixels

Facet Ratio

16:9
16:9
16:9
16:9
16:9

Brightness

200cd/m²
300cd/m²
300cd/m²
250cd/m²
250cd/m²

Distinction

800:1
700:1
700:1
1000:1
3000:1

Inputs
3G-SDI HDMI
4x3G-SDI, HDMI, RS485, GPI, USB
3G-SDI, HDMI, YPbPr, DVI, Video, Audio(L/R)
4x3G-SDI, HDMI, RS485, GPI, USB
4x3G-SDI, HDMI, RS485, GPI, USB
3G-SDI, HDMI, YPbPr, Video, Audio(L/R)

Outputs
3G-SDI, HDMI
4x3G-SDI, RS485, Stereo Headphone
3G-SDI, HDMI, YPbPr, DVI, Video, Audio(L/R)
4x3G-SDI, RS485, Stereo Headphone，speaker
4x3G-SDI, HDMI, RS485, GPI, USB
3G-SDI, HDMI, YPbPr, Video, Stereo Headphone, Speaker(built-in)

Options
1000ft transmission vary, 0.08S low latency, help 1080P@60Hz, Wi-fi full-duplex talkback, transmitter might be switched as a receiver, One TX to a number of RX, APP monitoring for Android/iOS, 13 frequency channels, AUTO channel scan
3D-LUT, HDR, All Waves, RGB Histogram, Focus Help, Zebra, Monochrome, False Colour, Timecode, 9 Grid, Security Marker, Middle Marker, Parade, Vector, Histogram, Audio Meter, Scan Mode, Anamorphic Mode, Zoom, Freeze, Pixel to Pixel, Colortemp
Peaking Focus Help, Test Area, Digital camera Mode, Pixel to Pixel, Middle Marker, Protected Marker, Picture Flip, Picture Freeze, Zoom All, U/D & L/R Zoom
3D-LUT, HDR, All Waves, RGB Histogram, Focus Help, Zebra, Monochrome, False Colour, Timecode, 9 Grid, Security Marker, Middle Marker, Parade, Vector, Histogram, Audio Meter, Scan Mode, Anamorphic Mode, Zoom, Freeze, Pixel to Pixel, Colortemp
3D-LUT, HDR, All Waves, RGB Histogram, Focus Help, Zebra, Monochrome, False Colour, Timecode, 9 Grid, Security Marker, Middle Marker, Parade, Vector, Histogram, Audio Meter, Scan Mode, Anamorphic Mode, Zoom, Freeze, Pixel to Pixel, Colortemp
Peaking Focus Help, Test Area, Digital camera Mode, Pixel to Pixel, Middle Marker, Protected Marker, Picture Flip, Picture Freeze, Zoom All, U/D & L/R Zoom

Unit Measurement
67L*24W*118H (excluding antenna）
372L×262H×28.4D (mm) (W/O bracket)
426L×297H×35.1D mm/ 503L×305H×230D mm (With Suitcase)
425L×296H×23D (mm) (W/O bracket)
511.6L×355.6H×23.3D (mm) (W/O bracket)
511.58Lx355.5Hx37.87D(mm)

Unit Weight
128g (One Unit)
1.81kg
10.7kg (With Suitcase)
2.84kg
4.27kg
4.25kg

【Constructed-in De-log 3DLUTs】The monitor has built-in multi digital camera logs to Rec 709 conversion 3DLUTs, together with C-log customary, C-log full, S-log2, S-log3, BMD-4Klog. Person can retailer as much as 16 immediately selectable 3D LUTs.
【Join Many Completely different Gadgets】The monitor is provided with 3G-SDI, HDMI2.0, HDMI1.4, RS485, GPI and DP interfaces, appropriate for transmission of various sign codecs.Versatile sufficient for use from the published facility, cellular dwell manufacturing or on set for function movie manufacturing!
【Correct Publicity and Focus】The IPS LCD panel itself has a decision of 1920 x 1080, a distinction ratio of 3000:1, and an LED backlight with a brightness of 250cd/m², providing you with an correct replica of video. It combines a large 178° viewing angle in each horizontal and vertical instructions. Straightforward viewing is ensured by decreasing colour modifications as a result of viewing angle.
【Bundle Embody】1× Mini HDMI Cable, 1× V-mount Battery Plate, 1× 3A Energy Adapter, 2× Stand Ft, 1× Operation Handbook【Word: battery not embrace】.【One yr guarantee】We’re at all times do do our greatest to enhance our product and higher companies, simply be at liberty to contact us.
