SinoTrack Automobile Battery Charger 6-Amp, 12V Sensible Totally Computerized Battery Charger Maintainer Trickle Charger for Automobile Truck Motorbike Garden Mower Boat Marine Lead Acid Batteries 12 Volt

Worth: $19.99
(as of May 22,2023 14:09:31 UTC – Particulars)

Product Description

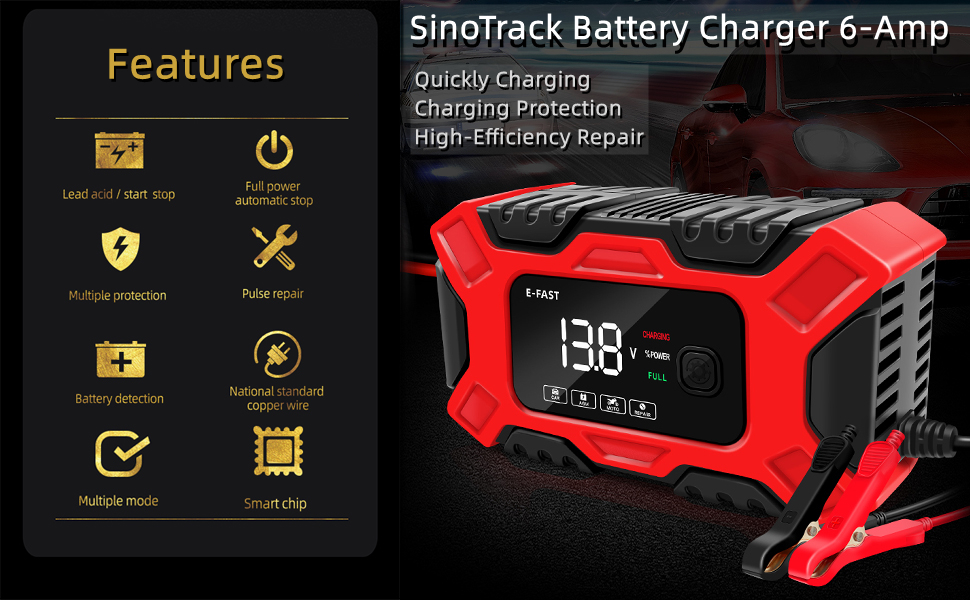

SinoTrack Battery Charger 6-Amp-Restor Your Battery

SinoTrack auto battery charger integrates quite a lot of safety capabilities, corresponding to reverse connection, quick circuit, overcharge, over temperature, over present, and different clever settings, which may successfully guarantee the security of the charging system and its charger
On the identical time, the charger reminiscence, battery energy detection, contact buttons, and different humanized settings are added to make charging extra handy and quick
With pulse restore operate, for lead-acid batteries that can not be charged attributable to delicate sulfation, the battery might be repaired and activated by pulse restore mode, which may cut back the sulfation phenomenon to a sure extent and make the battery cost usually.

Scope of software.

battery sort: charging voltage within the DC14.2-14.9V @ 12V mode vary of lead-acid class of batteries, is strictly prohibited to ternary lithium batteries or charging voltage isn’t on this vary of batteries for charging.
Working voltage: Relevant to AC100-240V, 50/60Hz AC mains vary.
Working ambient temperature: relevant to work within the surroundings -10 to +45 levels Celsius.
Altitude: appropriate to be used at altitudes as much as 4000 meters.

COOLING FAN&SMART CHIP

Precautions

Earlier than charging, observe whether or not the battery is damaged, whether or not there may be liquid overflow across the battery and different irregular phenomena, if there are irregular phenomena, please cost rigorously
Don’t cost within the air-melting surroundings.
Keep away from excessive temperature and excessive humidity environments when charging.
When charging, the floor of the battery shouldn’t be lined with objects, and the battery must be positioned upright and straight, not tilted.
When the sulfide materials at each ends of the constructive and unfavorable electrodes of the battery is simply too excessive, the sulfide materials must be eliminated first, in order that the battery might be higher charged
When the voltage of the charged battery may be very low, please restore it first after which cost it.
The charger output is related to the battery in one-handed operation, that’s one hand to the black clip within the unfavorable terminal of the battery, after which takes the pink clip within the constructive terminal of the battery.

Output short-circuit, anti-reverse connection: the product has an output short-circuit, reverse battery immediate (reverse connection 1-2S detection, detection of reverse connection or quick circuit when the LCD show “ERO”, the detection course of won’t trigger harm to the product due to reverse connection or quick circuit), and reverse connection, after the microprocessor program processing, there can be no reverse connection sparking phenomenon happens.
Battery energy detection: no entry to AC enter voltage, battery clamps clamped on the constructive and unfavorable ends of the battery (pink constructive and black unfavorable), you’ll be able to show the battery present and well timed voltage parameters (digital tube show information: voltage and ambient temperature cyclic show, energy grid in accordance with the detected information within the type of a proportion show, the primary energy on 6S self-test ready, 6S to not present solely the temperature, 6S to succeed in the temperature and voltage cyclic show)
Winter and summer season mode: the charging course of, detecting the ambient temperature, well timed adjustment of the product charging state to make sure battery life and charging security, winter mode: LCD show snowflakes, summer season mode: LCD show solar (automobile mode-specific options, different modes would not have)
Over-temperature safety: the product has an over-temperature safety operate, the product detects that the temperature is simply too excessive, and can begin the over-temperature safety program, when the temperature returns to regular values, restore the preliminary charging state
Overcharge safety: the product has an overcharge safety operate to keep away from overcharging leading to a decline in battery life and to boost the reliability of charging security (most charging time default 15.5-16.0H)
Battery full progress bar: the product charging course of to show the charging progress bar, within the type of proportion show, full show 100%

Simple to Use, Pleasant for Rookies

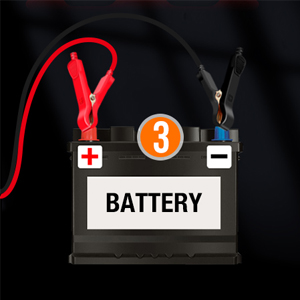

Step 1

The output alligator clips on each ends of the battery, pink constructive and black unfavorable

Step 2

Plug the charger AC enter line into the plug, after which open the plug change, mode choice, after which charging

Step 3

When the charger exhibits “FUL”, it implies that the charging mode is over, disconnect the AC enter right now and observe the battery capability standing after 10S (LCD cycle exhibits the voltage and battery energy), affirm that it’s full, disconnect the alligator clips from the battery

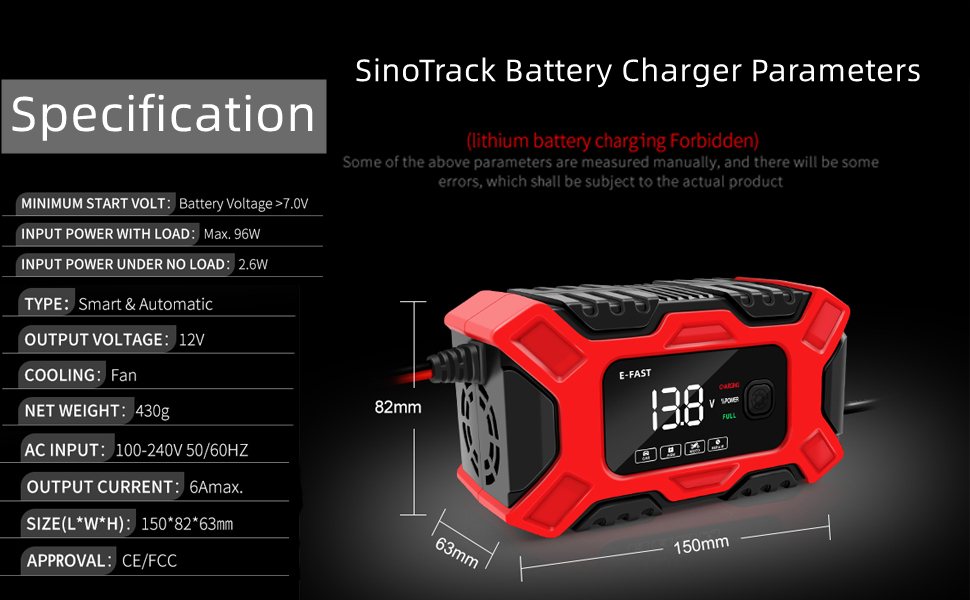

Product operate mode choice:

(1) Automotive battery charging mode

a: Charging present: Imax: 5.5A@DC12V mode

b: Charging voltage: DC14.4-14.9V@DC12V mode.

c: Battery sort: DC12V lead-acid battery

d: Most single cost period max: 15-16H

e: float charging voltage: DC13.8V

(2) AGM/GEL battery commonplace mode

a: Charging present: Imax: 5.5A@DC12V mode

b: Charging voltage: DC14.6V@DC12V mode.

c: Battery sort: DC12V lead-acid battery

d: Most single cost period max: 15-16H

e: floating cost voltage: DC13.8V

(3) Motorbike charging mode

a: Charging present: Imax: 1.5A@DC12V mode

b: Charging voltage: DC14.6V@DC12V mode.

c: Battery sort: DC12V lead-acid battery

d: Most single cost period max: 15-16H

e: floating cost voltage: DC13.8V

(4) Lead-acid battery restore mode

a: restore precept: constructive pulse voltage restore mode

b: Restore voltage: DC14.6V@DC12V mode; DC29.2V@DC24V mode

c: battery sort: lead-acid sort battery

d: restore most time max: 15-16H

e: float charging voltage: no float charging

Pleasant Use for Rookies: Simply join the battery and charger plug-in when charging, and activate the ability. It could actually routinely detect the present energy and ambient temperature of the battery to be charged, cost in accordance with the totally different discharging quantities of the battery to be charged and the real-time ambient temperature and routinely flip off the charging system after the battery is enough
Security and Efficient: Integrates varied safety capabilities, corresponding to reverse connection, quick circuit, overcharge, over temperature, over present, and different clever settings. Detects the ambient temperature throughout charging and adjusts the product charging standing in time, which may successfully make sure the battery life and the security of the charger. It additionally provides Charger reminiscence, battery energy detection, contact buttons, and different humanized settings, making charging extra handy and quick
Pulse Restore Perform: For lead-acid batteries that can not be charged attributable to delicate sulfation, this transportable trickle charger can undertake pulse restore mode to restore and activate the battery, which may cut back the sulfation phenomenon to a sure extent and make the battery cost usually. After restore switches the mode button into charging mode, and see if it may be charged usually if the restore 1-2 cycles or cannot be charged clearly to switch the battery
Visible LCD Display Show: the charging course of exhibits the charging progress bar, within the type of a proportion show when the total cost exhibits 100%. LCD show “ERO” signifies that the output quick circuit, reverse battery, and reverse connection, after the microprocessor program processing won’t trigger battery/product harm
