USB C Docking Station,Kind-C Laptop computer to Single 5K/Triple 4K Prolonged Show for MacBook&Thunderbolt3 Home windows (7 USB, 4K@60Hz DP, HDMI, LAN, 3.5mm Audio&Mic, SD&TF Card Reader, 60W PD)

Value: $259.98 - $169.99
(as of May 21,2023 12:20:32 UTC – Particulars)

Product Description

With the USB C Docking Station, a single USB 3.1 Gen2 Kind C port out of your laptop computer expands to 16 ports, a one-stop improve in your laptop computer! Energy customers want as many ports as they will pay money for and the Dock delivers on this promise. Whether or not you want a number of USB ports, Triple 4K show connectivity, Digital Audio in&out, or SD/TF Card Reader, the docking station packs the whole lot into an extremely compact unit.A compact answer for on-line working& convention or touring enterprise associates utilizing USB 3.1 Kind C-capable laptops, enabling connection to secondary show/projector.

Docking Utilization Instruction：

Please guarantee your laptop computer USB-C 3.1 Gen 2 Kind C port assist DisplayPort Alt Mode and Energy Supply earlier than buy.

In case your laptop computer solely has USB A port, then it’s INCOMPATIBLE with the USB C Docking Station.

1.All of the ports besides DP ports is plug and play,solely DP ports want driver.

2.Join the Charger with the docking station;

3.Plug the USB C cable into the USB C port of the dock and the USB C port of your laptop computer;

4.Make certain the LED gentle up on;

5.Join the laptop computer and monitor with HDMI 2.0 or DP 1.4 cable and wait a number of seconds to increase the laptop computer to your monitor.

IMPORTANT REMINDER:

USB-C is a brand new customary with a lot versatility. In consequence, compatibility info is complicated. Some USB-C methods assist Alt Mode video output, whereas others don’t. Some might be powered and charged by way of USB-C PD, whereas others don’t.

Please guarantee your laptop computer USB-C 3.1 Gen 2 Kind C port assist DisplayPort Alt Mode and Energy Supply earlier than buy.

Many present USB-C methods which do assist Alt Mode video output don’t assist charging by way of USB-C. Programs similar to it will output video from the dock, however will nonetheless want their proprietary OEM chargers.

HOW TO GET 5K or 4K:
Solely Macbook/MacBook Professional 2019 and above assist DP 4K@60Hz

Solely join single DP port assist 5K
HDMI displays should assist HDMI 2.0
HDMI cables should assist Excessive Velocity HDMI
DP geared up displays and DP cable should assist DisplayPort 1.4.
Decision could also be restricted to 2K if the show or cable don’t meet the above specs.

The host system Kind C port assist DisplayPort Alt Mode and Energy Supply.

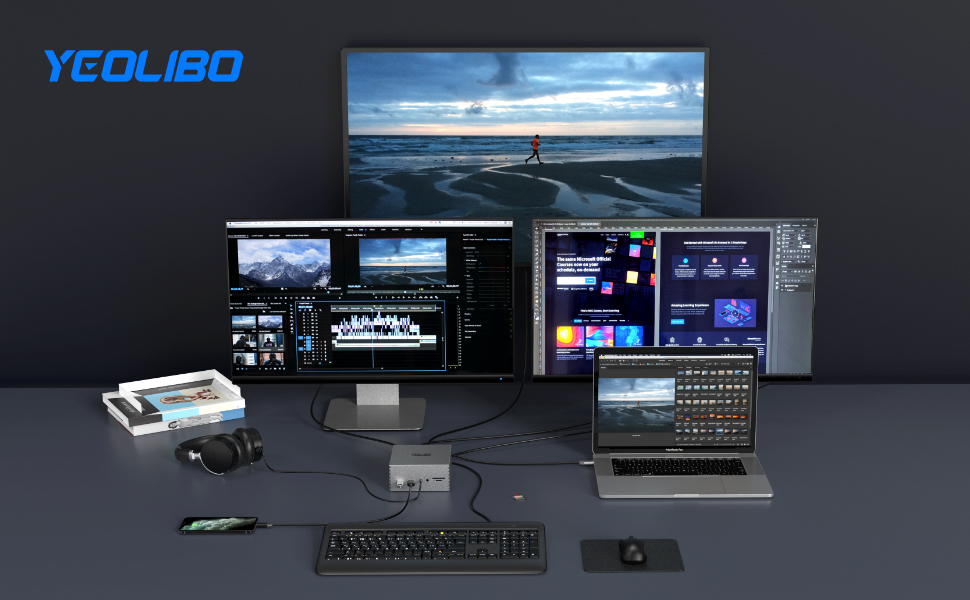

Single 5K/Triple 4K Shows

The docking station’s excessive connectivity isn’t just confined to knowledge as it will probably additionally obtain excessive visible constancy. Customers have the choice to attach triple prolonged 4K displays. The versatile DisplayPort connector can be utilized to connect with any monitor by way of using an lively DisplayPort cable/adapter.

Two DP outputs are Twin-Mode DisplayPort 1.4 ports and they’re backwards appropriate with earlier DisplayPort specs.HDMI output assist HDMI 2.0 and are backwards appropriate with earlier HDMI specs.

Multi Show Modes

Show Expertise DL-6950 Chipset:
Major or Substitute Mode:

This mode might help you set one of many exterior shows as the primary show to interchange your laptop computer lid — works nicely if you wish to use your laptop computer with the lid closed.

Lengthen Mode:

All of the exterior displays have completely different show output.

The show mirrors the content material of the host show.

Driver Ideas

Solely DP ports requires driver Troubleshooting:
For macOS customers , please unclick the Mirror Show within the System Desire.
Quick key for Home windows show setting: Home windows+P
Please use the USB extension cable when connecting the mouse or keyboard for optimum efficiency

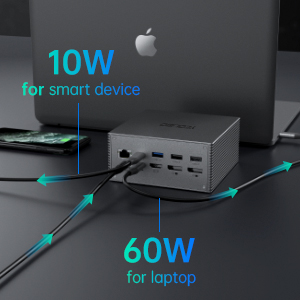

Twin PD Charging Assist

The docking station incorporates energy supply, permitting to cost Kind C laptops with out the necessity for OEM charger. The ability provide can cost host methods with as much as 60 watts of energy (20V, 3A) by way of the USB Energy Supply customary. Mac and PC customers can put their laptop computer charger away and energy their laptop computer by way of a single USB C cable.

The USB-C 3.0 Port on the dock assist 10W PD charging in your cellphone or different good units and as much as 5Gbps knowledge switch

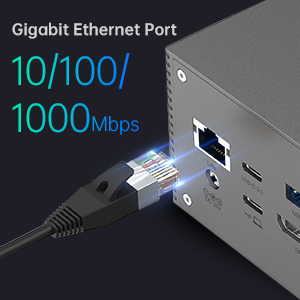

Gigabit Ethernet Port

RJ45 Gigabit LAN feminine port undoubtedly gives steady and quicker community connection, routinely adapts to 10M/100M/1000Mbps community transmission.

Arrange for macOS:

System Preferences →Community → Click on Add(+) to arrange a service → deciding on USB 10 / 100 / 1000 LAN to create an software → Click on the appliance to attach.

Environment friendly Knowledge Transmission.

With 3 USB3.0 and a couple of USB2.0 connection, as much as 5Gbps knowledge switch, sufficient to switch recordsdata in seconds. Simply handle your flash drive, onerous drive, keyboard, mouse and extra.

SD and microSD card slots assist nearly all SD card codecs for seamless entry to photographs and different media recordsdata.

The three.5mm AUX ports enables you to take heed to music or participate in conferences in full 48 kHz/16-bit digital transmission.

Technical Specs

Interface

1 x HDMI 2.0

2 x DisplayPorts 1.4

1 x Gigabit Ethernet

1 x DC Energy （60W）

1 x SD Card Reader (SD 4.0 UHS-II) | 1 x TF Card Reader

1 x Analog Audio In (Stereo) | 1 x Analog Audio Out (Stereo)

5 x USB 3.0 Kind-A (Gen1-5Gbps/5V 1.5A) | 2 x USB 3.1 Kind-C (5V 1.5A)(1 x Gen1-5Gbps) (1 x Gen2-10Gbps)

Appropriate Gadgets(Alt Mode, PD):

A number of the methods which at present assist Alt Mode, PD :

MacBook(2015/2016/ 2017/2018/2019/2020)

MacBook Professional( 2016/2017/2018/2019/2020)

iMac/iMac Professional(21. 5 in & 27 in)

iPad Professional 2018/2019

Dell XPS 13″ 9350/9360/9370/8930, Dell XPS 15 9550/9560, Dell Precision 5510/5520

HP Spectre x360 13″ (“Kaby Lake” model w)/Zbook/ Elitebook 840 G5, Lenovo Yoga 720 13″ & Yoga 920

USB C PD Charging Port
60W
100W
100W
100W
60W
60W

HDMI Port
4K@30Hz
4K@30Hz
1*4K@30Hz 1*2K@60Hz
4K@30Hz
Twin 4K@30Hz
1*4K@60Hz HDMI 1*4K@30Hz HDMI

DP Port
Twin 4K@60Hz
/
/
/
4K@30Hz
4K@60Hz DisplayPort

VGA Port
/
/
2K@60Hz
/
/
/

Knowledge Switch Velocity
As much as 10 Gbps
As much as 5 Gbps
As much as 5 Gbps
As much as 5 Gbps
As much as 10 Gbps
As much as 10 Gbps

Triple Show
✓
x
✓
x
✓
✓

USB A Port
3 x USB 3.0 2 x USB 2.0
3 x USB 3.0 1 x USB 2.0
3 x USB 3.0 1 x USB 2.0
2 x USB 3.0 2 x USB 2.0
3 x USB 3.0 3 x USB 2.0
3 x USB 3.0 3 x USB 2.0

USB C
1 x USB-C 3.1 Gen2 1 x USB-C 3.1 Gen1
1 x USB-C 3.0
/
1 x USB-C 3.0
1 x USB-C 3.1 Gen2 1 x USB-C 3.0
1 x USB-C 3.1 Gen2 1 x USB-C 3.0

Gigabit Ethernet
1000Mbps
1000Mbps
1000Mbps
1000Mbps
1000Mbps
1000Mbps

SD/TF Slots
✓
✓
✓
✓
✓
✓

[Triple 4K Extended Displays]: usb c docking station Assist 3 displays as much as 4K(DP 4K@60Hz HDMI 4K@30Hz).Simply setting mirror /prolong/major video mode.Assist Completely different Display screen of Multi Displays.Please be aware DisplayPort and HDMI are separate requirements which make the most of completely different cables and connectors. Most PC displays and all TVs should not have DisplayPort connections. Conversion to HDMI, Single-Hyperlink DVI, or VGA is feasible by way of adapters.
[Dual 4K@60Hz DisplayPorts Compatibility]: Appropriate for all of the USB 3.1 Kind C(Gen1 and Gen2) which signifies that even the host laptop computer Kind C port doesn’t assist video output . DisplayPort outputs by way of DisplayLink DL-6950 “Alt Mode” .Simply assist twin 4K@60Hz or Single 5K. The DP ports requires driver set up,please obtain the motive force on DisplayLink web site earlier than utilization.
[Single 4K@30Hz HDMI Compatibility]:The plug and play HDMI port solely appropriate with the USB 3.1 Kind-C Gen2 methods,be sure that the host laptop computer Kind C port assist video and energy supply.Assist 4k@30Hz decision.
【Superfast Knowledge Switch and 60W Quick Charging】: The USB-C docking station contains a 10Gbps USB-C 3.1 Gen2 port and a 5Gbps USB-C 3.1 Gen1 port, permitting for lightning-fast switch of 1GB recordsdata. Moreover, you may select to cost your laptop computer with the USB-C PD port (as much as 60W) on the laptop computer docking station. Moreover, the 2 USB A 2.0 ports on the laptop computer docking station can be utilized to attach keyboards and mice with none delay.
